4k@60Hz HDMI2.0 Optical Fiber Extender-product-LIGHTSPEED TECHNOLOGY CO., LIMTED.1

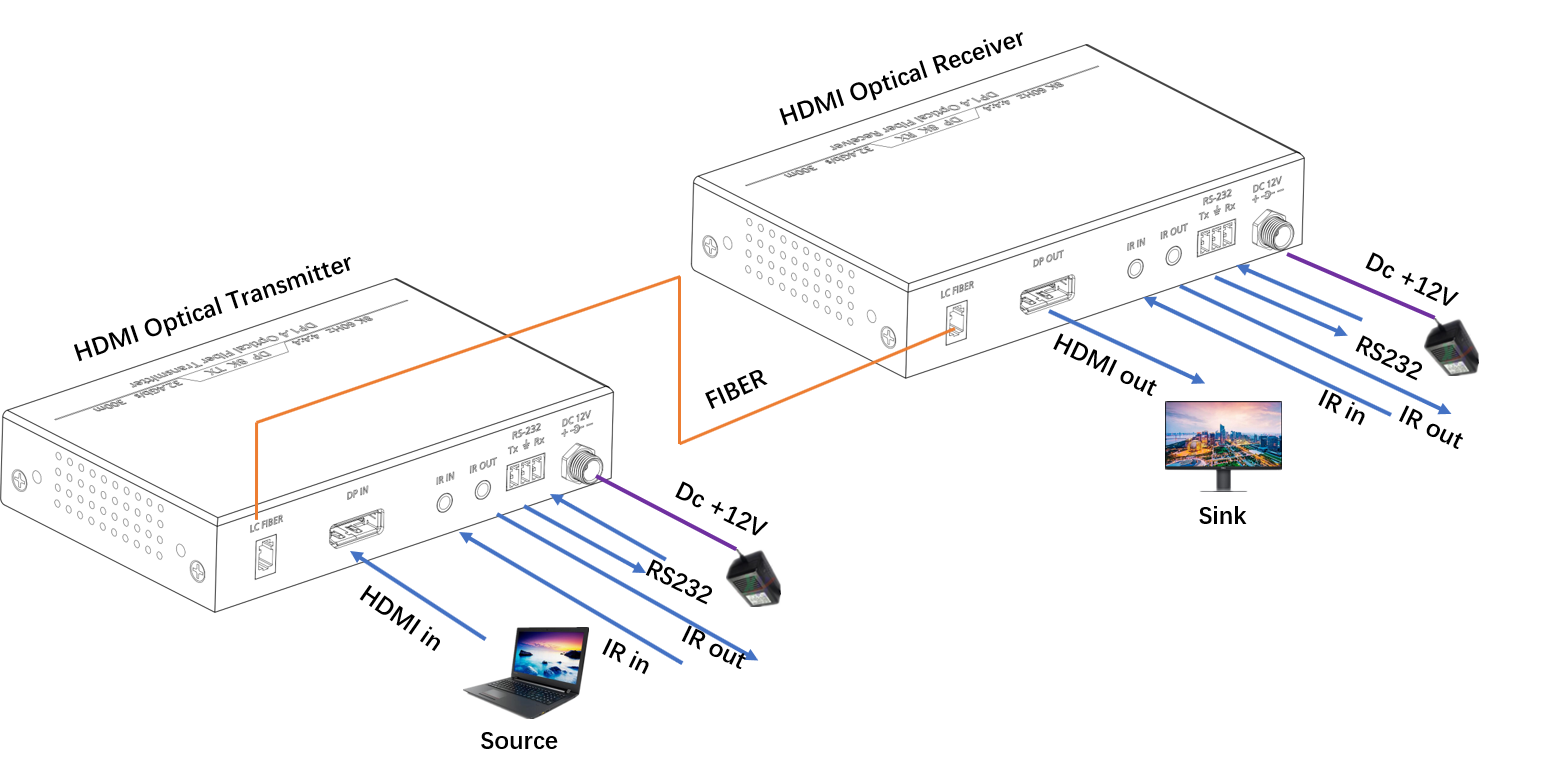

FEATURES：

1） CWDM Single Fiber Technology;

2） 1270/1290/1310/1330/1490/1550nm DFB lasers inside

3） Compliant with HDMI2.0,HDMI1.4 ;

4） Compliant with HDCP2.2(Transparent pass-through);

5） Extension distance up to 300 meters.

6） Transmit signal over one Single-mode Fiber or OM3 multimode Fiber

7） Uncompressed video up to 18Gb/s data rate(600M Hz pixel clock);

8） 4096 x 2160@60Hz/4:4:4 maximum resolution(600MHz);

9） 1xLC Fiber Connector;

10）Bi-directional RS-232 and IR extension;

11）Zero frame delay;

12）HDR and Dolby Vision support;

13) DC +12V 1A Power Supply.

Absolute Maximum Ratings

Parameter	Symbol	Minimum	Maximum	Units
Supply Voltage	VCC	- 0.3	+ 12.0	V
Input and Output Voltage	Vin/out	- 0.3	5	V
Operating Temperature	Top	-10	70	°C
Operating Relative Humidity	RHop	5	80*	%RH
Storage Temperature	Tsto	- 40	+ 85	°C
Storage Relative Humidity	RHsto	5	95*	%RH

- Specifications

- General Specifications:

	Parameter	Specifications
Resolution	4k*2k 60Hz	4096x2160 at 60Hz (4:4:4)
Components	Laser Diodes	1270/1290/1310/1330nm 10Gb/s CWDM DFB Lasers. 1490nm/1550nm 1.25Gb/s CWDM DFB lasers
	Photo Diodes in Rx Module	1100nm~1620nm PIN Photo Detector
	WDM filter	Integrated 1270nm/1290nm/1310nm /1330nm/1490nm/1550nm filter
Electrical	Input and Output Signals	TMDS Level (complying with HDMI2.0)
	Data Transfer Rate (Graphic Data)	Max. 10.0Gbps
	Maximum Video Bit Rate	18Gb/s
	Total Jitter at the end of Rx output	Max. 0.6UI
	Skew inter-channels	Max. 2ns
Optical	Link Power Budget	Min 8dB
Mechanical	Module dimension (mm)	162WX85LX26H
Connector	Optical Connector	1X LC connector
	Electric Connector Type from Systems and to Displays	HDMI Female
	Recommended Fiber	OM3 MM Fiber or Single-mode Fiber
Extend Distance		300m

Order Information:

HDMI2.0 OPTCAL TRASNMITTER: HDMI2.0 OPTCAL RECEIVER:

P/N: LHDMI-20S01-T P/N:LHDMI-20S01-R
