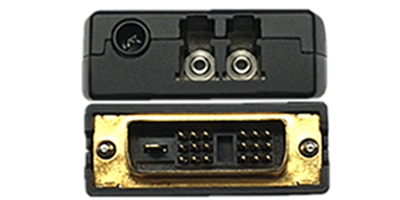

LDVI2-202S-T/R DVI Fiber extender is a high perfomanc low cost prouct, which can extend the HD video transmission range up 2km over 2xLC single-mode fiber, or 500m over multi-mode fiber. The tranmitter integrate a 1310/1550nm WDM filter, 2x 1310nm and 2x1550nm lasers,laser drivers inside.and the receiver integrate 1310/1550nm WDM filter, 4x InGaAS PINs, amplifiers inside.
Features
Specification
Block diagram
System Diagram
Download
Order Information
● Resolution
is up to WUXGA (1,920 X 1,200) 60Hz ;
● Detachable 2xLC Fiber connector; ● Distance
is up to 500m over 2xLC
multi-mode fibers; ● Distance
is up to 1,500m over 2x LC
single-mode fibers;
● Offers EDID programming feature, learning the EDID from the display and restoring to the transmitter
EEPROM;
● The
modules are compact enough to directly plug to graphic sources and displays by
adopting DVI-plugs; ● Certifies
FCC and CE standards for EMI/RFI emission;
● Data
security with negligible RFI/EMI emissions and loss of video quality due to no
copper conductor
present;
General Specifications：
Parameter
Specifications
Resolution
PC
resolution:
1920x1200/60Hz
HDTV Resolution
1080p/60Hz
Range
Over Single-mode Fiber
2000m
Components
Over Multi-mode fiber
500m
Laser Diodes in Tx Module
1310nm/1550nm FP Laser
Electrical
Photo Diodes in Rx Module
InGaAs PIN-PD
Input and Output Signals
4x TMDS
Data Transfer Rate (Graphic Data)
Max. 1.65Gbps
Total Jitter at the end of Rx output
Max. 309 ps
Optical
Skew inter-channels
Max. 6ns
Mechanical
Link Power Budget
Min 10.5dB
Connector
Module dimension (mm)
42WX16HX69L
Optical Connector
2 x LC connectors
Electric Connector Type from Systems and to Displays
