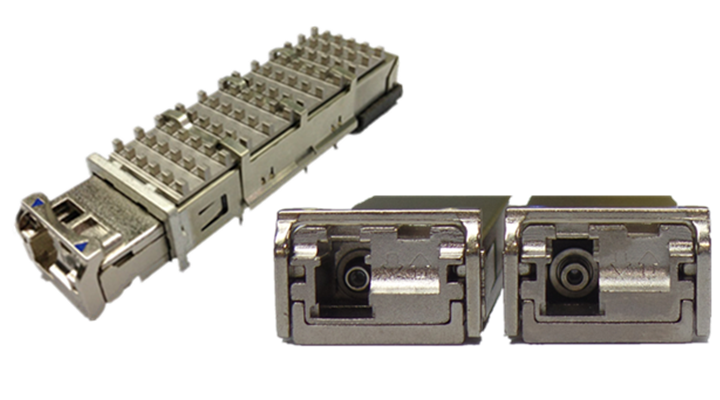

		4k LHDX-10GS1K1-TR
		Lightspeed LHDX-10GS1K1-TR is a hot pluggable XFP optical transmitter and Receiver for DVI/HDMI fiber system, it support HDMI1.4 and Pixel clock is up to 340Mb/s.The transmission distance is up to 10km over Single-Mode fiber.It just only support 4xTMDS video signal transmission over fiber, does't support HDCP, because optical trasmission is one way which from transmitter to receiver.

● MSA XFP Packge；

● Hot pluggable;

● 1xLC optical connector;

● 1310nm DFB laser;

● Support HDMI 1.4 ; Pixel clock is up to 340Mb/s ;

● Resolution up to 3840*2160/30Hz;

● Support 4k*2k/60Hz(YUV:4:2:0);

● Without HDCP ;

● Distance up to 2km over Single-mode Fiber;

● Single +3.3V power suply ;

● Operation Tem. –10℃~+70℃;

● Compliant with ROHS;

Specification:

Order Information:

XFP Transmitter: XFP Receiver:

P/N: LHDX-10GS1K1-T P/N: LHDX-10GS1K1-R

XFP Cage: XFP Connector:

P/N: LHDX-CAGE001 P/N: LHDX-CON0001
